Size: 19 x 25 inches

This original ‘RESTRICTED’ aircraft identification poster was published by the U.S. Naval Aviation Training Division Nov 1942. This poster was posted as a training tool as well as an in theater ID poster to help U.S. and other Allied pilots, bomber crews and Naval personal to identify Allied and enemy aircraft. W.E.F.T.U.P. or Wing, Engine, Fuselage, Tail, Undercarriage, Peculiarities was a system set up for the purpose of aircraft identification and recognition.

World War II saw some of the first introduction of these aircraft ID poster to prevent friendly fire and more accurate plane recognition in combat. It was believed these posters alone could save countless lives from friendly aircraft-on-aircraft or friendly anit-aircraft fire. These posters also could cut down precious second pilots, bomber gunners, and naval gun crews would have to ID a plane flying towards them intern saving their lives by shooting first.

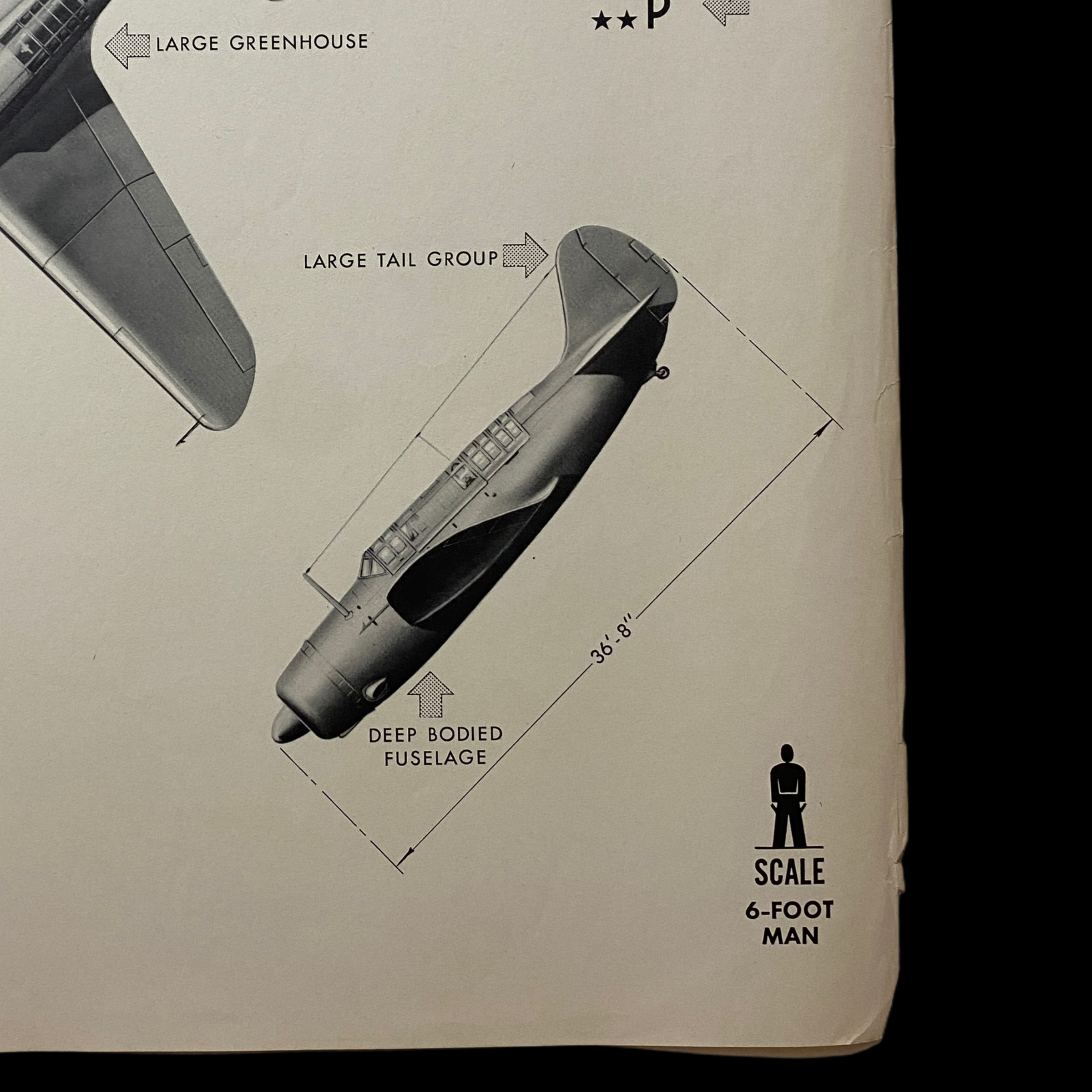

Each poster provides the silhouettes, dimensions, and relevant information to educate both air and ground personnel in aircraft identification. Immediate identification of aircraft, friendly or not, was essential in order for the observer (whether in the air e.g., pilot, gunner, or patrol observer, or on the ground, e.g., anti-aircraft crew) to determine his next course of action (e.g., acknowledge, attack, evade, or report). Each poster details a large clean sky and background image of the specified aircraft located as the main top imagine on the poster. It also contains important ‘peculiarities’ such as where certain gun emplacements are located, other special aircraft features, as well as wing and length measurements.

Curtiss SB2C Helldiver:

The Curtiss SB2C Helldiver, also known as the A-25 Shrike, is a dive bomber developed by Curtiss-Wright during World War II. As a carrier-based bomber with the United States Navy (USN), in Pacific theaters, it supplemented and replaced the Douglas SBD Dauntless. A few survivors are extant.Initially poor handling characteristics and late modifications caused lengthy delays to production and deployment, to the extent that it was investigated by the Truman Committee, which turned in a scathing report. This contributed to the decline of Curtiss as a company. Neither pilots nor aircraft carrier skippers seemed to like it.[1] Nevertheless, the type was faster than the Dauntless, and by the end of the Pacific War, the Helldiver had become the main dive bomber and attack aircraft on USN carriers.[1]By the time a land-based variant, known as the A-25 Shrike became available, in late 1943, the Western Allied air forces had abandoned dedicated dive-bombers. A majority of A-25s delivered to the US Army Air Forces were transferred to the US Marine Corps, which used the type only in one side campaign and non-combat roles. The British Royal Navy and the Royal Australian Air Force also cancelled substantial orders,[2] retaining only a few aircraft for research purposes.Nicknames for the aircraft included "Big-Tailed Beast" or just "Beast",[3] "Two-Cee", and "Son-of-a-Bitch 2nd Class"; the latter nickname was derived from the name SB2C and the Shrike's reputation for having difficult handling characteristics.

In the Battle of the Philippine Sea, 45 Helldivers, most of which had been deliberately launched from extreme range, were lost when they ran out of fuel while returning to their carriers.

The solution to these problems began with the introduction of the SB2C-3 beginning in 1944, which used the R-2600-20 Twin Cyclone engine with 1,900 hp (1,400 kW) and Curtiss' four-bladed propeller. This substantially solved the chronic lack of power that had plagued the aircraft.[13] The Helldivers would participate in battles over the Marianas, Philippines (partly responsible for sinking the battleship Musashi), Taiwan, Iwo Jima, and Okinawa (in the sinking of the battleship Yamato). They were also used in the 1945 attacks on the Ryukyu Islands and the Japanese home island of Honshū in tactical attacks on airfields, communications and shipping. They were also used extensively in patrols during the period between the dropping of the atomic bombs and the official Japanese surrender, and in the immediate pre-occupation period.
